Description

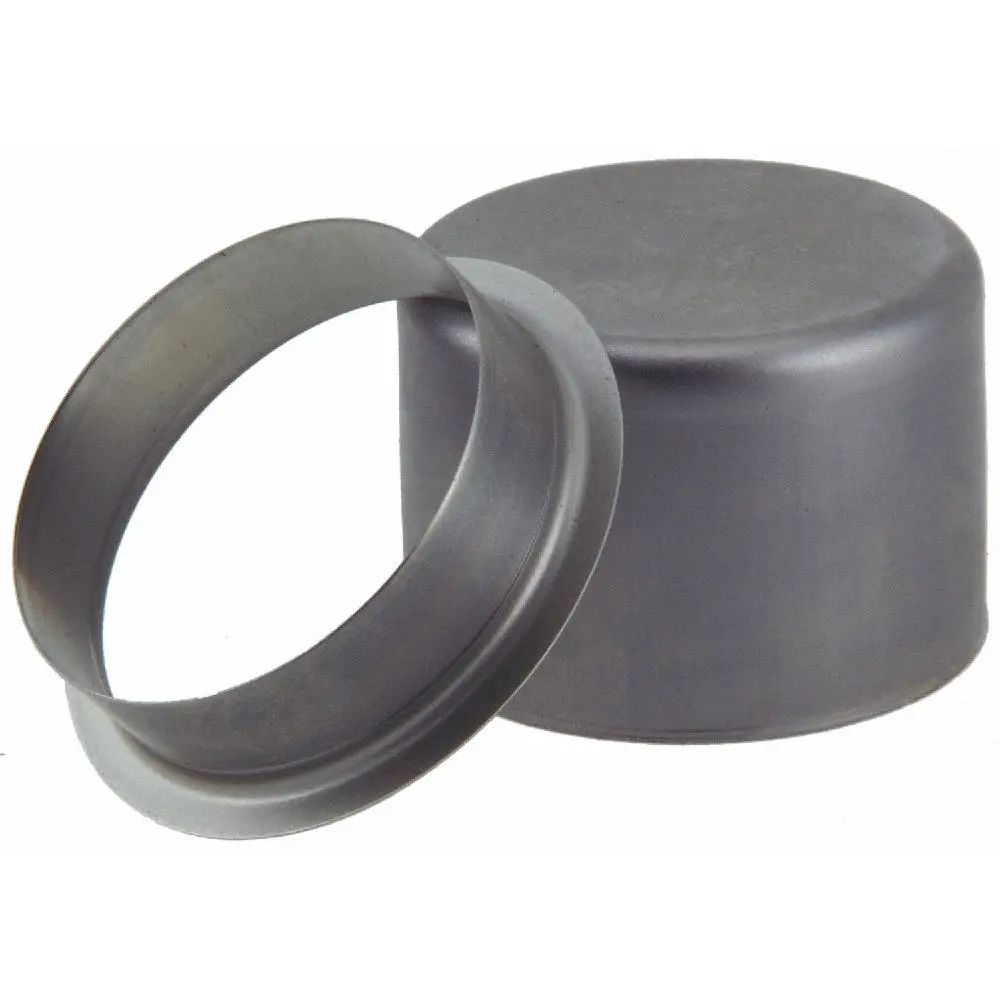

- Designed to repair damaged, grooved or worn shafts
- Durable stainless steel construction for corrosion-free sealing surface that surpasses most original shaft specifications
- Ideal for a shaft where indications of seal wear, such as tracks or grooves have developed
- Ultra-thin construction (0.01/0.25mm wall thickness) allows original seal size to be used with minimal additional lip loading
- Easy to install with removable flange and installation tool
- Installation tool reduces sleeve distortion and allows for installation without removal from the shaft
Product Specification
- Material: Stainless Steel
- Product Description: Repair Sleeve
- Part Description: Redi-Sleeve
- Flanged Outside Diameter (in): 1.496
- Flanged Outside Diameter (mm): 38.000
- Installation Depth (in): 0.709
- Installation Depth (mm): 18.010
- Overall Width (in): 0.437
- Overall Width (mm): 11.100
- Shaft Size (in): 1.263
- Shaft Size (mm): 32.000
- Shaft Size Maximum (in): 1.263
- Shaft Size Maximum (mm): 32.080
- Shaft Size Minimum (in): 1.257
- Shaft Size Minimum (mm): 31.930
- Unit of Dimension: Inch
- Width on Shaft (in): 0.315
- Width on Shaft (mm): 8.000
