Description

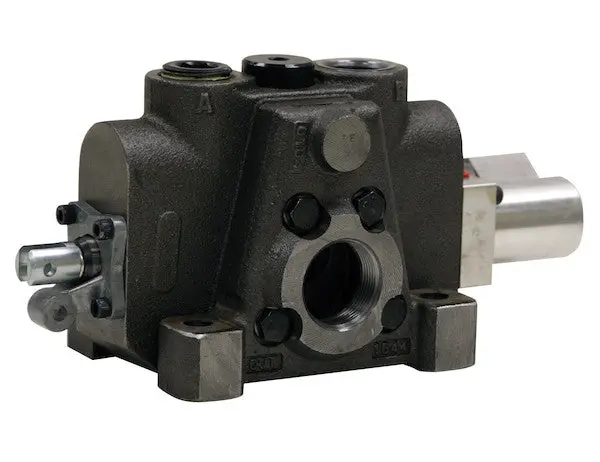

The Hydraulic Valve from Buyers Products is built to be tough and reliable for heavy duty dump truck hydraulic operations. It’s rated at 35 GPM.
The 3-position, 3-way valve is pneumatically controlled (can also be shifted by handle, see “Accessories” below). It easily installs with 1 in. NPT inlet work ports and a 1-1/4 NPT return to tank.
The relief valve is preset at a maximum allowable 2000 PSI .
Technical Information:
- Main Relief Setting: 2000 PSI
- Maximum Pressure: 3000 PSI
- Power Beyond (Y/N): No
- Port Relief (Y/N): Yes
- Spool Action: Power Up/Gravity Down – 1 Port Relief
- Maximum Flow Rate: 35 GPM
- Work Port Size: 1 NPT
- Inlet Port Size: 1 NPT
- Outlet Port Size: 1 1/4 NPT
- Electronically Operated (Y/N): No
- Port Relief Angle: N PSI
- Port Relief Dump: 2000 PSI
Commonly Used With: Dump Trucks
