Description
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 1.5 lbs
- Size: 20G-20MP
- Length: 4.44
- Length: 112.8
- Seal Type: Thread Interference/Mated Angle
- Gender: Male
- Swivel: No
- Thread Size: 1 1/4-11 1/2

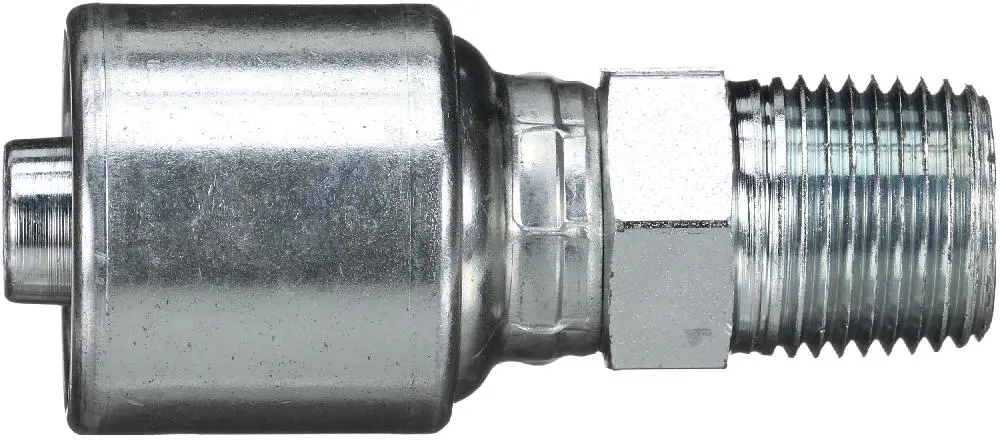

- Coupling Description: MegaCrimp Male Pipe (NPTF – 30 Cone Seat)
- Cut Off (in) – C: 2.13
- Cut Off (mm) – C: 54
- Hose Inside Diameter (in): 1.25
- Hose Inside Diameter (mm): 31.8
- Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
- Industrial Description: 20G-20MP
- Length (in) – L: 4.44
- Length (mm) – L: 112.8
- Stem Hex (in) – H1: 1.75
- Bent Tube Angle: Straight
- Mated Angle: 30
- Mating Angle: 30
- Nose Seat: Inverted
- Thread Angle: 60
