Description
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. Not to be used as a live swivel. Internal O-rings rated at +250 Deg. F (+121 Deg. C). SAE J1926/3 ISO 11926-3 Light-Duty (L Series) Stud End.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 0.4 lbs
- Size: 6G-8MBX90
- Length: 2.41
- Length: 61.2
- Seal Type: O-Ring
- Gender: Male
- Drop Length: 1.63
- Drop Length: 41.3
- Swivel: Yes
- Thread Size: 3/4-16

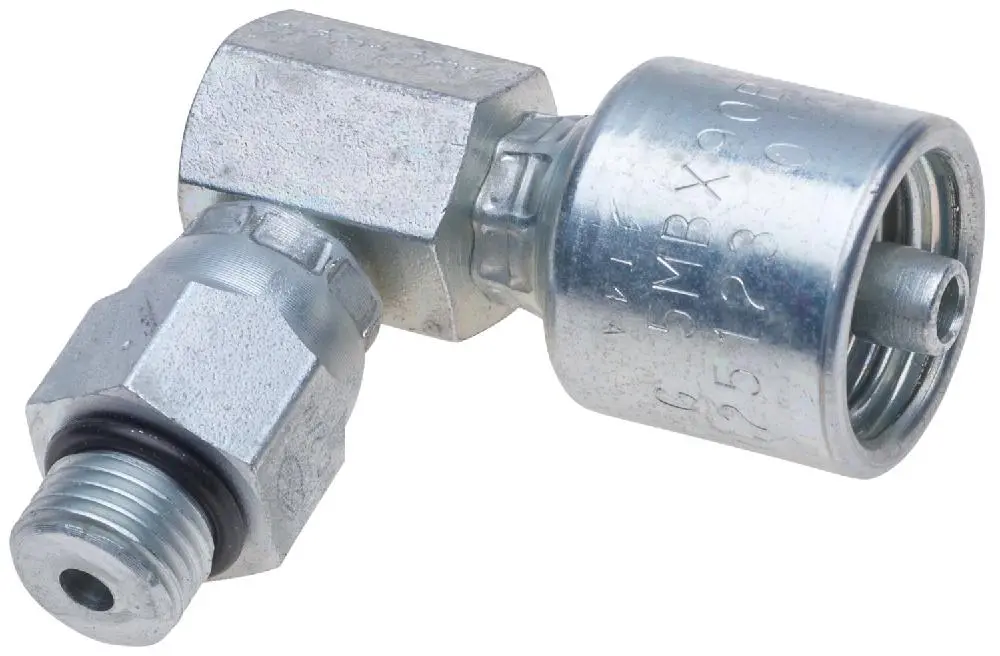

- Coupling Description: MegaCrimp Male O-Ring Boss Swivel – 90 Block
- Cut Off (in) – C: .83
- Cut Off (mm) – C: 21.1
- Drop (in) – T: 1.63
- Drop (mm) – T: 41.3
- Hose Inside Diameter (in): .375
- Hose Inside Diameter (mm): 9.5
- Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
- Industrial Description: 6G-8MBX90BL
- Length (in) – L: 2.41
- Length (mm) – L: 61.2
- Nut Hex (in) – H2: 1
- Bent Tube Angle: 90 Block
- O-Ring Location: Outside O-Ring Boss
