Description
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 0.2 lbs
- Size: 6G-5FJX
- Length: 57.7
- Length: 2.27
- Seal Type: Mated Angle
- Gender: Female
- Swivel: Yes
- Thread Size: 1/2-20

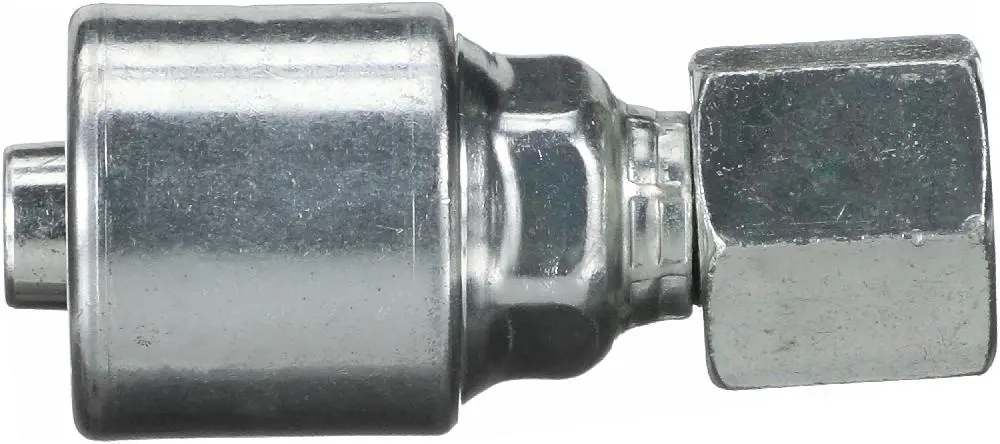

- Coupling Description: MegaCrimp Female JIC 37 Flare Swivel
- Cut Off (in) – C: 1.17
- Cut Off (mm) – C: 29.8
- Hose Inside Diameter (in): .375
- Hose Inside Diameter (mm): 9.5
- Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
- Industrial Description: 6G-5FJXSP
- Length (in) – L: 2.27
- Length (mm) – L: 57.7
- Nut Hex (mm) – H2: 17
- Stem Hex (mm) – H1: 17
- Bent Tube Angle: Straight
- Mating Angle: 37
- Nose Seat: Standard
