Description
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 1.5 lbs
- Size: 16GE-16FJX90M
- Length: 4.73
- Length: 120.2
- Seal Type: Mated Angle
- Gender: Female
- Drop Length: 71
- Drop Length: 2.8
- Swivel: Yes
- Thread Size: 1 5/16-12

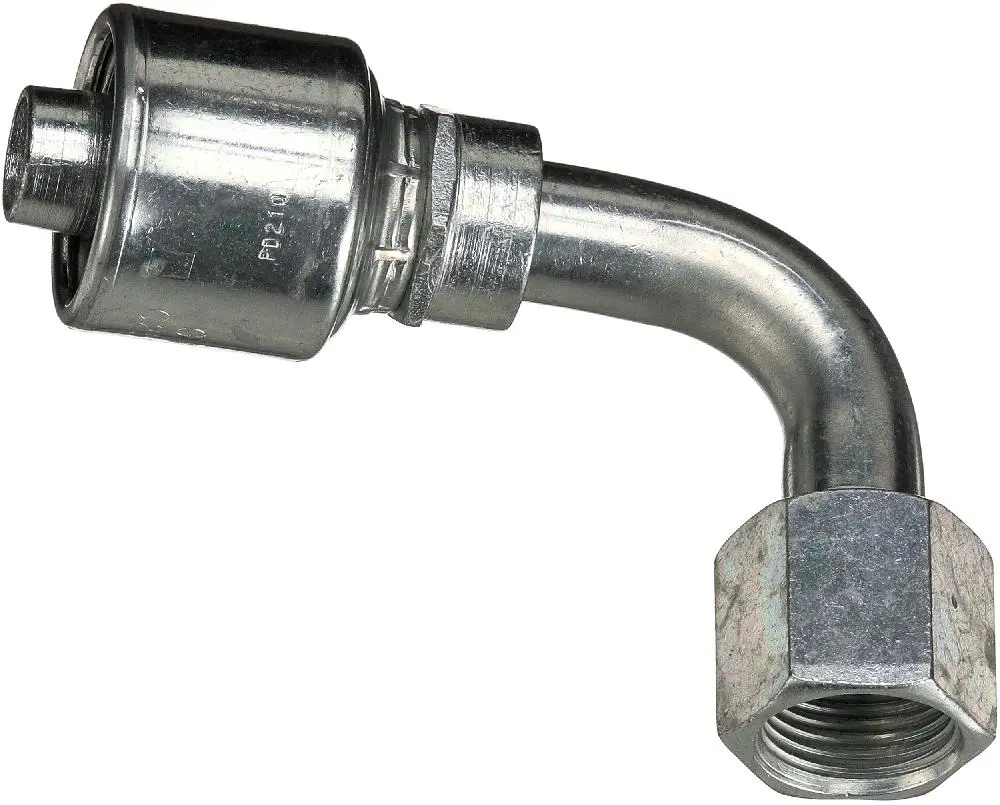

- Coupling Description: MegaCrimp Female JIC 37 Flare Swivel – 90 Bent Tube
- Cut Off (in) – C: 2.5
- Cut Off (mm) – C: 63.4
- Drop (in) – T: 2.8
- Drop (mm) – T: 71
- Hose Inside Diameter (in): 1
- Hose Inside Diameter (mm): 25.4
- Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
- Industrial Description: 16G-16FJX90M
- Length (in) – L: 4.73
- Length (mm) – L: 120.2
- Nut Hex (mm) – H2: 41
- Bent Tube Angle: 90
- Mating Angle: 37
- Nose Seat: Standard
