Description

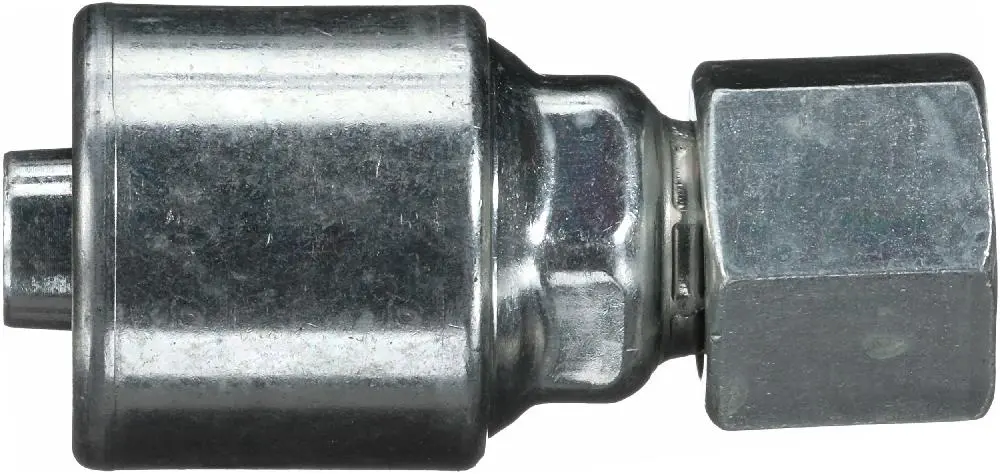

The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose. SAE J1453 O-ring Face Seal.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 1.4 lbs
- Size: 16GE-16FFORX
- Length: 4.09
- Length: 104
- Seal Type: O-Ring
- Gender: Female
- Swivel: Yes
- Thread Size: 1 7/16-12
- Coupling Description: MegaCrimp Female Flat-Face O-Ring Swivel
- Cut Off (in) – C: 1.86
- Cut Off (mm) – C: 47.2
- Hose Inside Diameter (in): 1
- Hose Inside Diameter (mm): 25.4
- Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
- Industrial Description: 16G-16FFORX
- Length (in) – L: 4.09
- Length (mm) – L: 104
- Nut Hex (mm) – H2: 41
- Stem Hex (mm) – H1: 36
- Bent Tube Angle: Straight
- Bulkhead: No
- O-Ring Location: Flat Face O-Ring
