Description
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 0.3 lbs
- Size: 8G-8MIX
- Length: 3.3
- Length: 83.8
- Seal Type: Mated Angle
- Gender: Male
- Swivel: Yes
- Thread Size: 3/4-18

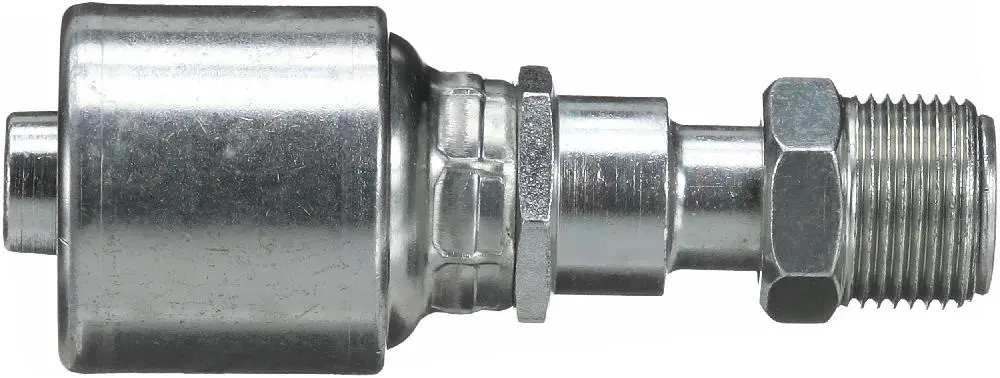

- Coupling Description: MegaCrimp SAE Male Inverted Swivel
- Cut Off (in) – C: 1.82
- Cut Off (mm) – C: 46.3
- Hose Inside Diameter (in): .5
- Hose Inside Diameter (mm): 12.7
- Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
- Industrial Description: 8G-8MIX
- Length (in) – L: 3.3
- Length (mm) – L: 83.8
- Nut Hex (in) – H2: .75
- Stem Hex (in) – H1: .8125
- Bent Tube Angle: Straight
- Mating Angle: 45
- Nose Seat: Inverted
