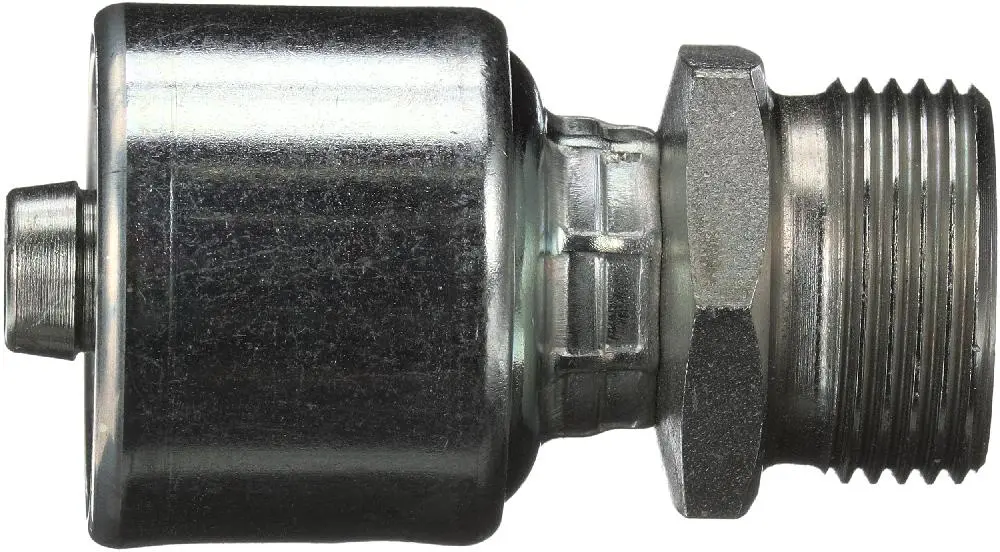

Description
The patented “C” insert pre-assembled MegaCrimp coupling gives world-class, leak-proof performance. It is designed with a patented “C” insert attached to the ferrule that accommodates hose of different constructions and wall thicknesses. The insert’s design ensures crimping forces are evenly distributed to form a concentric seal. The “C” insert simplifies inventory requirements since one MegaCrimp coupling size can accommodate various hose outside diameters, on both one- and two-wire braid hydraulic hose.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 0.1 lbs
- Size: 4G-6MDL
- Length: 44
- Length: 1.73
- Seal Type: Mated Angle w/O-Ring
- Gender: Male
- Swivel: No
- Seat Angle: 24
- Thread Size: M12X1.5
- Coupling Description: MegaCrimp Male DIN 24 Cone – Light Series
- Cut Off (in) – C: .82
- Cut Off (mm) – C: 20.9
- Hose Inside Diameter (in): .25
- Hose Inside Diameter (mm): 6.4
- Hose Recommendation: Can Accommodate Various Hose Outside Diameters on Both One-Wire & Two-Wire Braid Hydraulic Hose
- Industrial Description: 4G-6MDL
- Length (in) – L: 1.73
- Length (mm) – L: 44
- Stem Hex (mm) – H1: 14
- Tube Outside Diameter (mm) – A1: 6
- Bent Tube Angle: Straight
- DIN Series: Light
- O-Ring Location: On Female w/Inverted Nose Seat
- Seated Angle: 24
- Termination: DIN
