Description

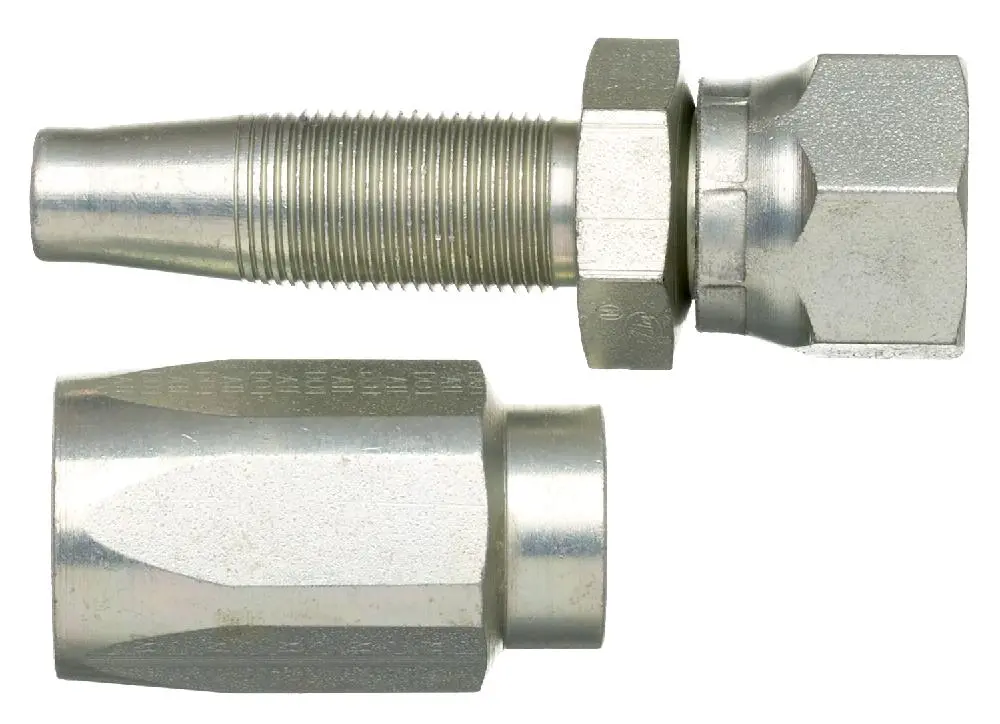

Gates D.O.T. Type A2 Field Attachable couplings work with C5C, C5CXH, C5D and C5M hoses to allow for easy assembly fabrication of air brake, power steering, transmission oil cooler and hot oil lines without the need for a crimper.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 0.2 lbs
- Size: 6C5-6RFJX90
- Length: 2.28
- Length: 57.9
- Inside Diameter: .3125
- Inside Diameter: 7.9
- Drop Length: 21.3
- Drop Length: .84
- Thread Size: 9/16-18
- Coupling Description: Field Attach C5CXH, C5C, C5D, C5M Female JIC 37 Flare Swivel – 90 Bent Tube – Steel
- Cut Off (in) – C: 1.33
- Cut Off (mm) – C: 33.8
- Drop (in) – T: .84
- Drop (mm) – T: 21.3
- Hose Inside Diameter (in): .3125
- Hose Inside Diameter (mm): 7.9
- Hose Recommendation: Gates C5C, C5D, C5CHX, C5M
- Industrial Description: 6C5-6RFJX90
- Length (in) – L: 2.28
- Length (mm) – L: 57.9
- Nut Hex (in) – H2: .6875
- Stem Hex (in) – H1: .5
- Nut Hex Size: .6875
- Stem Hex Size: .5
- Cut-Off Length: 1.33
- Cut-Off Length: 33.8
- Hydraulic Hose Recommendation: Gates C5C, C5D, C5CHX, C5M
