Description
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system. Metric Hex per ISO Draft International Standard 12151-1. SAE J1453 O-Ring Face Seal. MGS Couplings for use with MC4-20 Crimper Only.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 0.9 lbs
- Size: 12GS-12FFORX90M
- Length: 5.04
- Length: 128
- Drop Length: 57.9
- Drop Length: 2.28
- Thread Size: 1 3/16-12

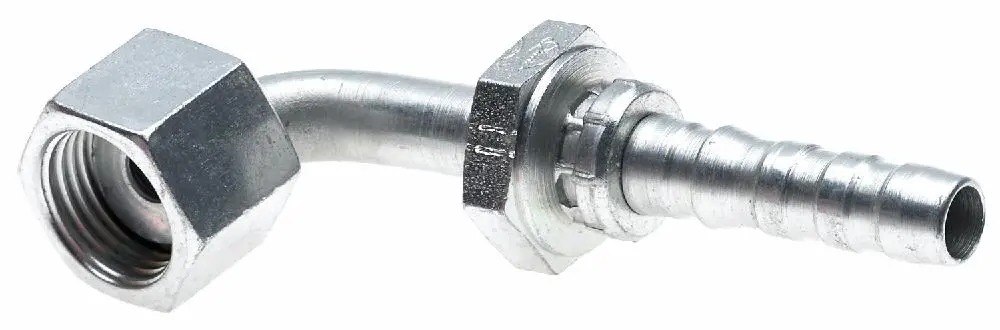

- Coupling Description: GlobalSpiral Female Flat-Face O-Ring Swivel – 90 Bent Tube
- Cut Off (in) – C: 3.03
- Cut Off (mm) – C: 77
- Drop (in) – T: 2.28
- Drop (mm) – T: 57.9
- Hose Inside Diameter (in): .75
- Hose Inside Diameter (mm): 19.1
- Hose Recommendation: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
- Industrial Description: 12GS-12FFORX90M
- Length (in) – L: 5.04
- Length (mm) – L: 128
- Nut Hex (mm) – H2: 36
