Description
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 1 lbs
- Size: 16GS-16FJX45S
- Length: 5.98
- Length: 151.9
- Drop Length: 23.9
- Drop Length: .94
- Thread Size: 1 5/16-12

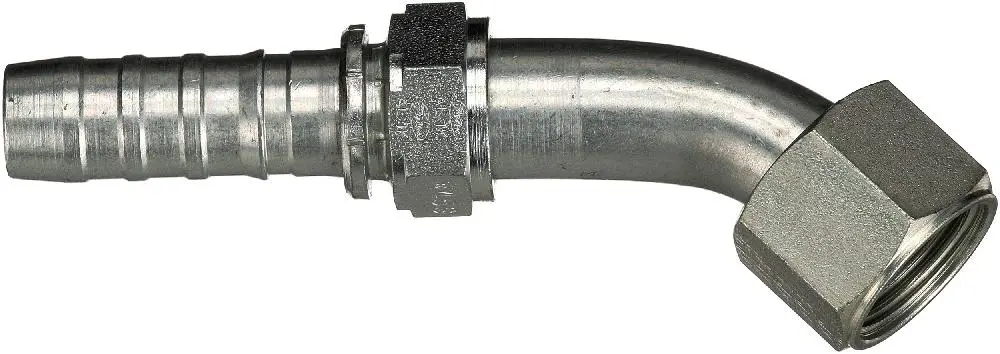

- Coupling Description: GlobalSpiral Female JIC 37 Flare Swivel – 45 Bent Tube
- Cut Off (in) – C: 3.77
- Cut Off (mm) – C: 95.7
- Drop (in) – T: .94
- Drop (mm) – T: 23.9
- Hose Inside Diameter (in): 1
- Hose Inside Diameter (mm): 25.4
- Hose Recommendation: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
- Industrial Description: 16GS-16FJX45S
- Length (in) – L: 5.98
- Length (mm) – L: 151.9
- Nut Hex (in) – H2: 1.5
