Description
GlobalSpiral couplings are specially engineered to provide superior performance for extreme high-pressure, high-impulse spiral-wire hydraulic hose applications. They can be used with all Gates MegaSys four- and six-spiral wire hose up to 6,000 psi. When used with 2-wire ferrules, GlobalSpiral couplings can also be crimped on Gates wire-braid hoses. The innovative, two-piece, no-skive design reduces assembly time, labor, fabrication errors and contamination of the ?uid power system.
Product Attributes:
- Part Term: Hydraulic Coupling / Adapter
- Weight: 0.6 lbs
- Size: 16GS-16MJ
- Length: 4.09
- Length: 103.9
- Thread Size: 1 5/16-12

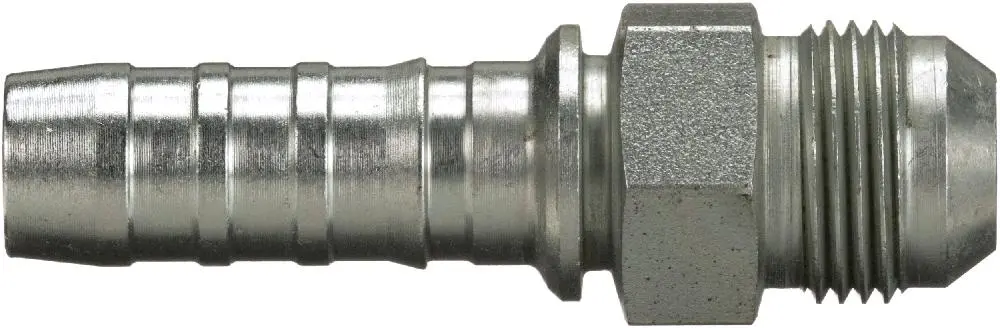

- Coupling Description: GlobalSpiral Male JIC 37 Flare
- Cut Off (in) – C: 1.86
- Cut Off (mm) – C: 47.2
- Hose Inside Diameter (in): 1
- Hose Inside Diameter (mm): 25.4
- Hose Recommendation: All Gates MegaSys Four and Six-Spiral Wire Hydraulic Hose Up to 8,000 psi
- Industrial Description: 16GS-16MJ
- Stem Hex (in) – H1: 1.375
