Description

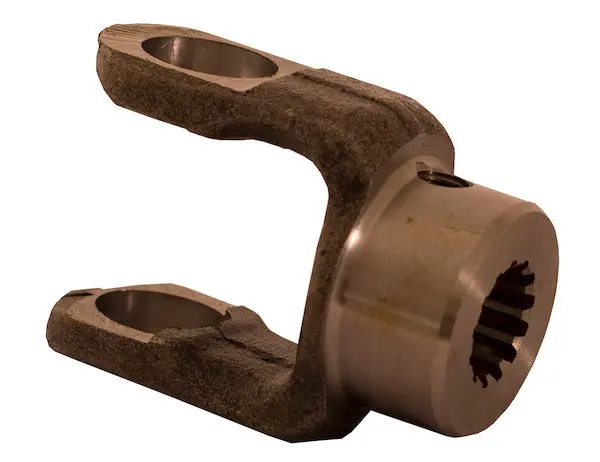

Buyers Products H7 Series End Yoke with Round Bore is a strong, durable component for your flexible coupling needs. The yoke is compatible with other major manufacturers’ medium duty driveline components.
The yoke is made of forged steel for strength and durability. It works with Buyers Products NB7A U-joints to provide smooth and continuous torque transfer.
The H7 Series End Yoke is perfect for medium duty applications with the ability to handle up to 800 inch pounds of torque at 1,000 RPM (12 HP).
Technical Information:
- Bore Type: Round
- Finish: Plain
- Keyway At: 2
- Keyway Size: 0.312
- Material: Forged Steel
- Set Screw At Location: 1
- Series: H7
- Bore Diameter/Width: 1.250″
- End of Hub To Centerline of Set Screw Hole: 0.625″
- Hub Diameter: 2.0″
- Center Line to End of Hub: 2.5″
- Joint: 15 Degrees
- Set Screw Size: 3/8-16
Commonly Used For: Remote Mount Hydraulic Pumps, Shaft Driven Air Compressors, Shaft Driven Generators, Shaft Driven Water Pumps
