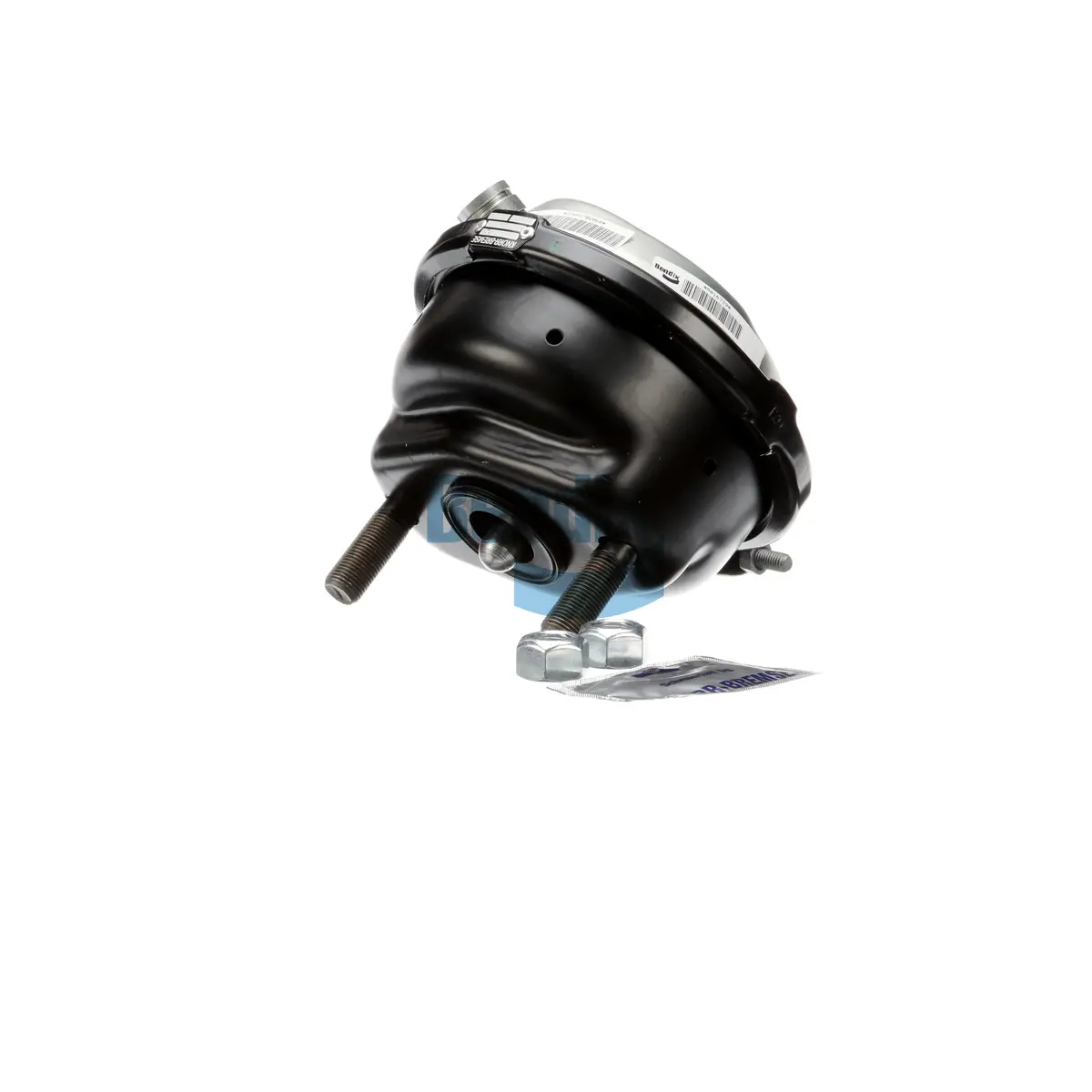

Description
- Steel Pressure Housing
- Powder coated with resistance welded air ports
- World Class Diaphragm
- High quality rubber compound, resistant to heat and cold
- Superior flexibility even at -40°F
- Sturdy Service Housing
- Powder coated for corrosion resistance
- Flat bottom with 10 gauge steel
- Orange Alert® Stroke Indicator
- Self-piloting Dust Shield
- Air Port Threads 3/8-18 NPTF
- Maximum Air Pressure: 150 psi
Product Specifications
- Actuator Type Size: 30
- Stroke Type: Standard
- Available Stroke: 2.50″, 64mm
- Length from mounting bracket to end of Spring Housing (A): 3.7″, 94mm
- Dimension at Service Clampband (D): 10.2″, 259mm
- Stud Spacing: 4.75″ (120.7mm) with 5/8-11 UNC studs
- Distance to Clevis Pin centerline from face of Service Housing
- Air Port position (90°)
- Service Clampband position (0°)
