Description

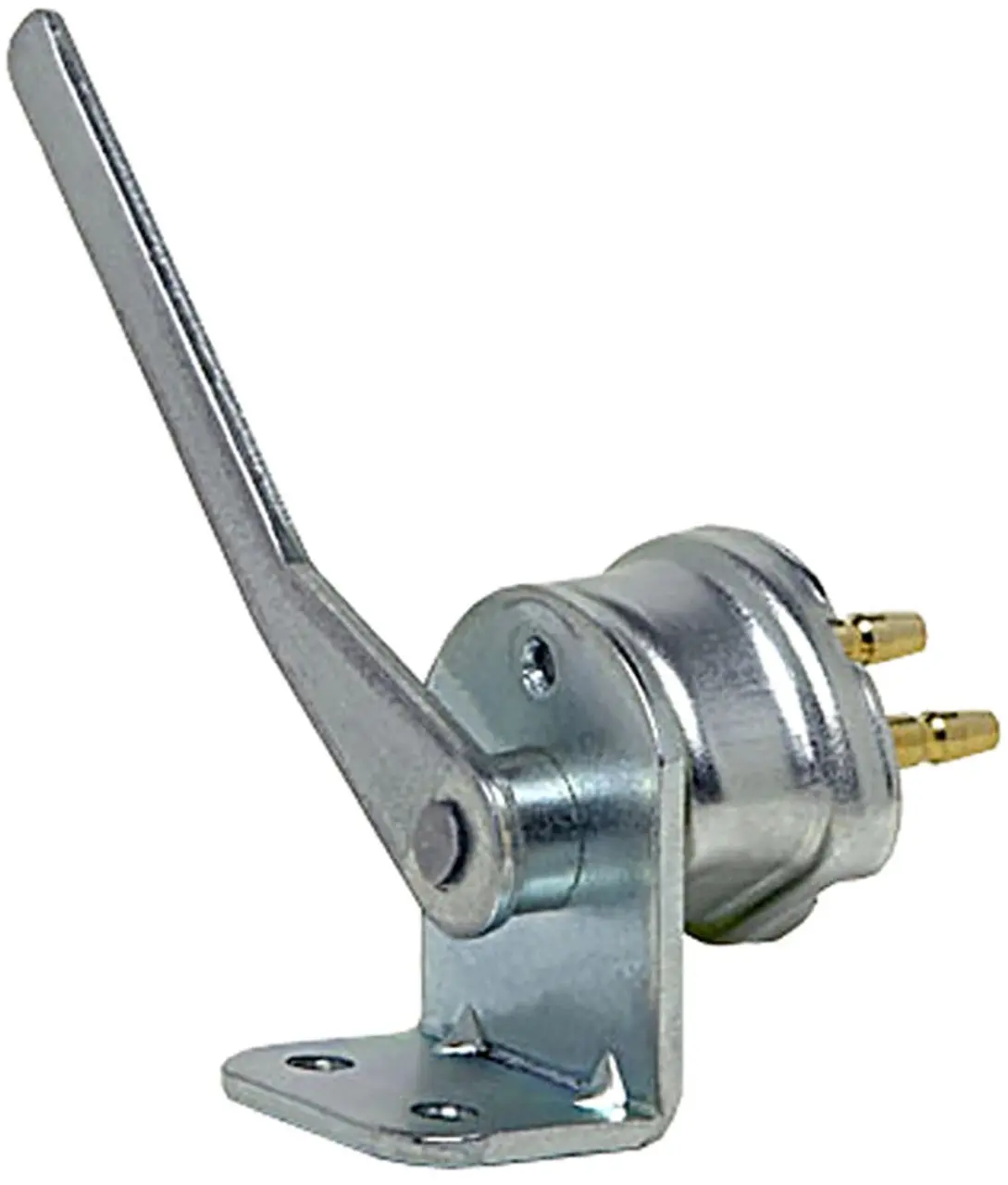

When viewed from the terminals. the lever projects to the right.Lever is 2 7/8″” overall length. Two tapped 10-32 mounting holes. 5/8″” on centers. Replaces: Delco D851. D853. D855. GMC 1997901. 1997915. 1997922. Motorcraft SWG-317. Wagner FC-21630. Single Pile Single Throw switches that are Normally On (Spring return to On) or Normally Off (Spring return to Off)
Technical Information
- Current Rating (Continuous) in Amps: 4.
- Voltage Rating (Max): 12
- Circuitry: SPST
- Normal Position: Normally Closed, Spring Return to Closed
- Actuator: Lever
- Input Terminals: Two #10-32 Terminal Screw
- Housing: Plated Steel
- Mounting Method: Two 10-32 tapped holes 5/8 (15.87 mm) on center
