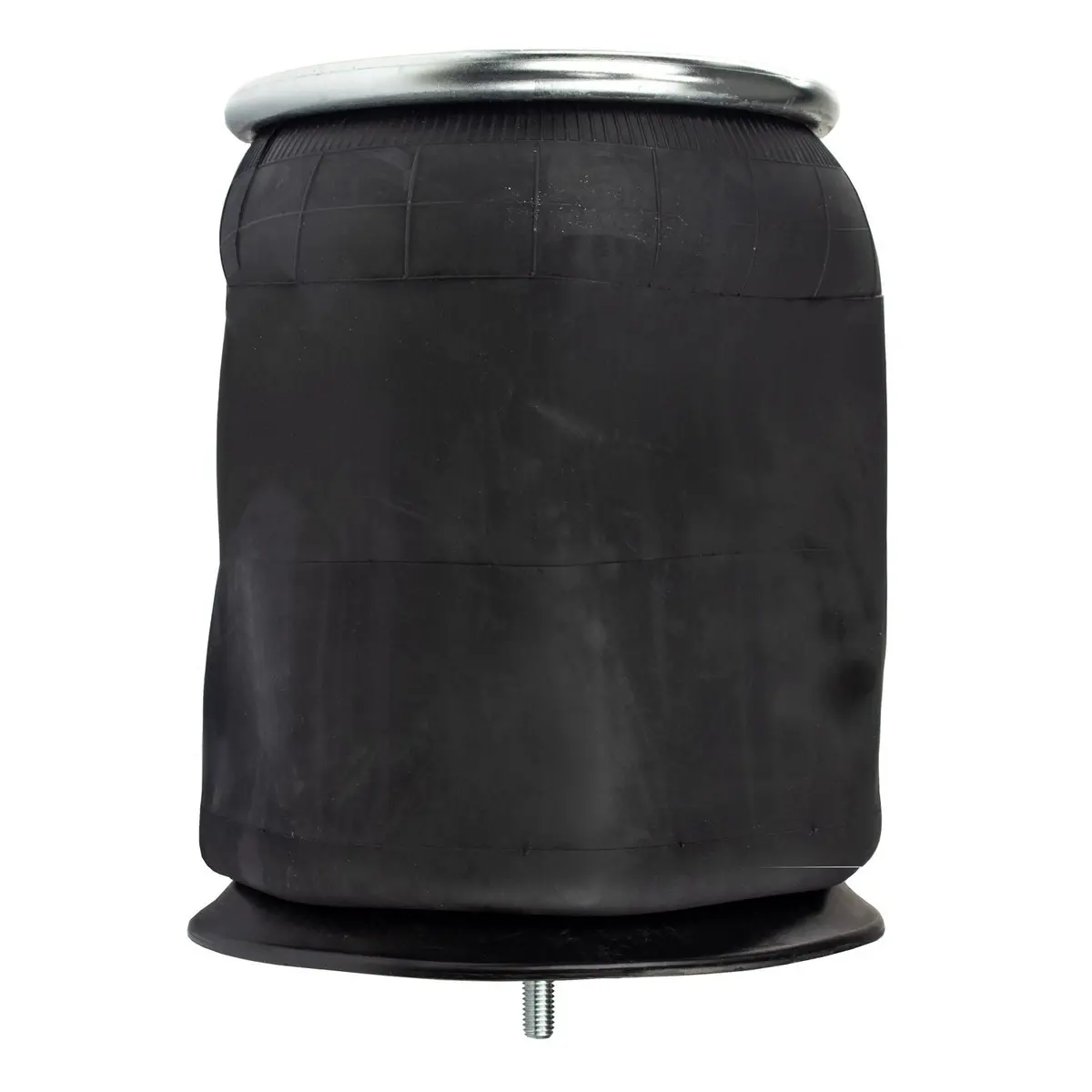

World American WA01-8864C Rolling Lobe Air Spring Designed for Parallel Installation

Description

Technical Information

• Bottom Plate Alignment: Parallel
• Bottom Plate Center to Center Diameter: 2.25
• Bottom Plate Diameter: 7.88
• Bottom Plate Hole Quantity: 1
• Bottom Plate Type: A
• Design Height: 16
• Load Rating at 100 PSI: 7070
• Load Rating at 80 PSI: 5640
• Maximum Diameter: 12.6
• Maximum Height: 25.2
• Minimum Height: 7.8
• Natural Frequency: 65
• Spring Type: Rolling Lobe
• Top Plate Center to Center Diameter: 6.2
• Top Plate Diameter: 9
• Top Plate Hole Quantity: 2

Cross References: AB1DK23L-8864, 66666, 9019P898, 352-8864, E-FS8864, 8865, 8864, W01-358-8864, 1R12-1097, G2298864200, FS8864, FS8865, AS88640, 03-08716, C81-1011, C81-1013, TR8864, 8898, AS-8864, AS-8898, AB1DK10A-8997, AB1DK10D-8997
