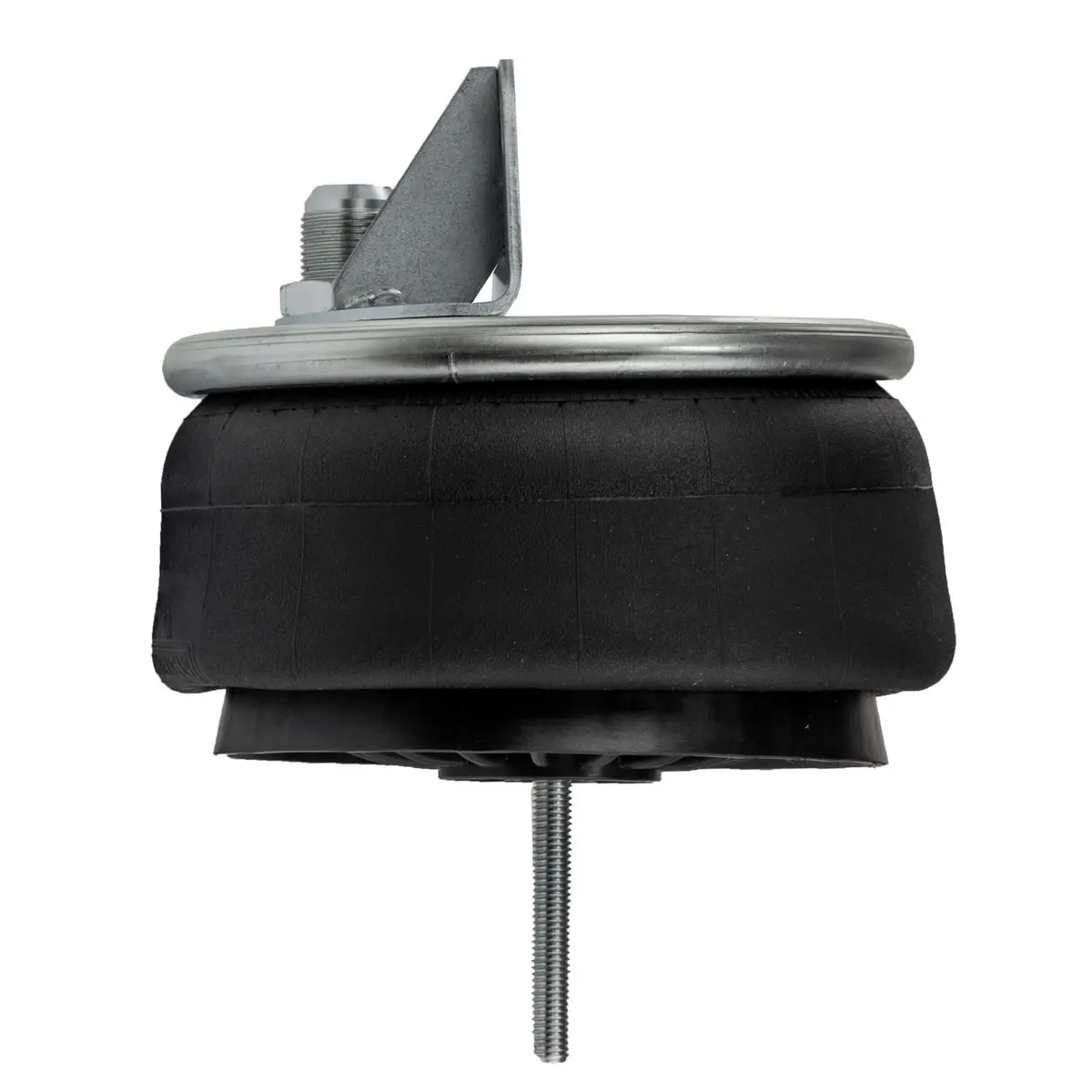

World American WA01-9580C Parallel-Mount Rolling Lobe Air Suspension Spring

Description

Technical Information

• Bottom Plate Alignment: Parallel
• Bottom Plate Center to Center Diameter: 3.23
• Bottom Plate Diameter: 10.63
• Bottom Plate Hole Quantity: 1
• Bottom Plate Type: P
• Design Height: 12.5
• Load Rating at 100 PSI: 7860
• Load Rating at 80 PSI: 6290
• Maximum Diameter: 12.6
• Maximum Height: 23
• Minimum Height: 8.3
• Natural Frequency: 70
• Spring Type: Rolling Lobe
• Top Plate Center to Center Diameter: 6.2
• Top Plate Diameter: 9
• Top Plate Hole Quantity: 2

Cross References: AB1DK25C-9580, 10-99580, AS1R13118, M-3564, 10 10-21 P 434, 101021P434, 10 10-21 P 494, 64394, 352-9580, E-FS9580, 9262, 9580, W01-358-9580, 1R13-081, 1R13-118, 1R13-144, C20127, S20414, FS9580, RFS9580, AS95800, S-23992, TR9580, 6386, AS-6386, WA01-9580
