Description

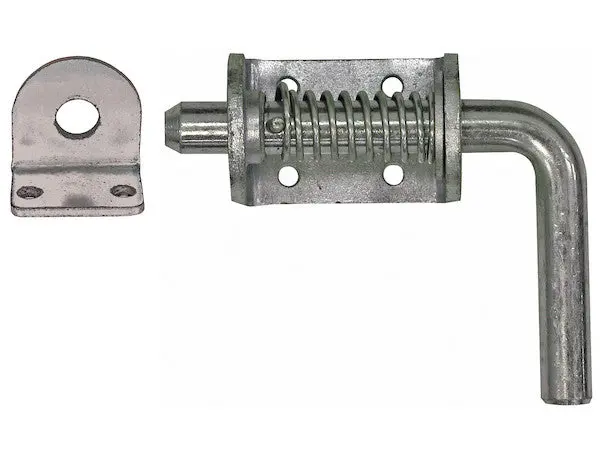

Buyers Products Spring Latch is ideal for uses where doors, compartments, or panels need to engage and disengage quickly and securely.
The spring-loaded bolt can be locked in the open position as needed turning the lever allows the bolt to close securely under spring pressure.
The latch is available in your choice of stainless steel or zinc-plated steel and in various sizes. It can be ordered with or without the keeper. All mounting hardware is sold separately.
Technical Information
- Bolt Finish: Zinc Plated
- Bolt Material: Carbon Steel
- Handle Finish: Zinc Plated
- Handle Material: Carbon Steel
- Housing Finish: Zinc Plated
- Housing Material: Carbon Steel
- Latch Style: Spring Latch
- Pin Diameter: 0.50″
- Housing Length: 3.00″
- Bolt Length: 1.03″
- Bolt Width: 0.50″
- Bolt Height: 0.88
- Housing Width: 1.75″
- Housing Height: 1.75″
- Pin Length: 5.19″
- Handle Length: 3.88″
- Mounting Style: Bolt-On
- Mounting Holels Center to Center: 1.25″
- Mounting Hole Diameter: 0.28″
- Keeper Included: No
